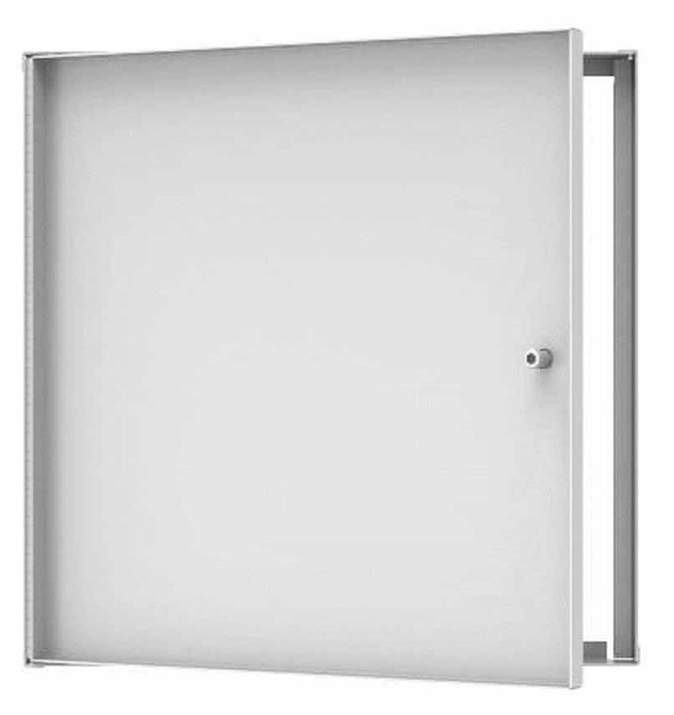

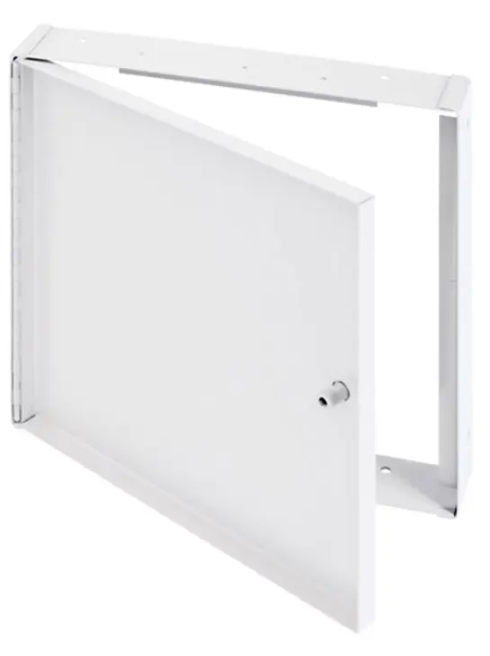

AHA Recessed Steel Access Panel, No Flange, Allen Key Lock, Primed Painted White

Recessed Access Door without Flange

Non-rated access panel with a 5/8" door recess to accept acoustical tiles, drywall or ceramic tiles.  For installation in any wall or ceiling material.  1" and 1 1/2" door recess is also available  (Contact our office for details).  The door & frame is standard as 16 gauge and also comes standard with a Allen head hex lock.

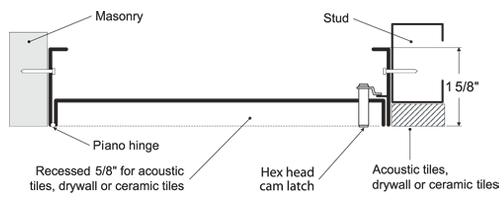

Designed with a 5/8″ recessed door, this panel accepts ceramic tiles, acoustical tiles or any other type of material in order to blend in with the surface finish.

Details of the AHA Recessed Access Door:

• Installation:  Walls and ceilings
• Material:  Steel
• Door Recess: 5/8" recess

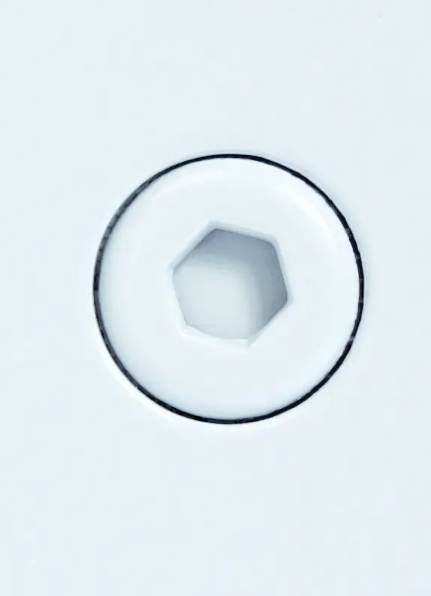

• Locking mechanism:  Allen hex head cam latch.  Requires a standard allen key to open the access door
• Frame: 1 5/8 " in depth, made of steel
• Hinge:  Piano hinge
• Flange:  No flange
• Rough Opening Requried:  Door sizes + ¼ " or + 6mm
• Finish:  Powder Coat Primed White
• Special Sizes:  Other sizes available upon request
