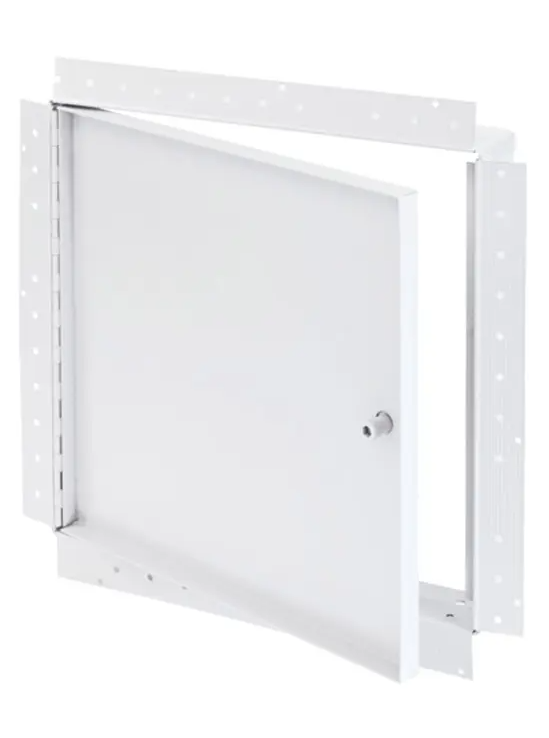

AHA-GYP Recessed Steel Access Panel with Drywall Bead Flange, Allen Key Lock, Primed Painted White

Recessed Access Door with Drywall Bead Flange

Non-rated access panel with a 5/8" door recess to accept acoustical tiles, drywall or ceramic tiles & a drywall bead perimeter flange for tape & spackle.  For installation in any wall or ceiling material.  1" and 1 1/2" door recess is also available  (Contact our office for details).  The door & frame is standard as 16 gauge and also comes standard with a Allen head hex lock.

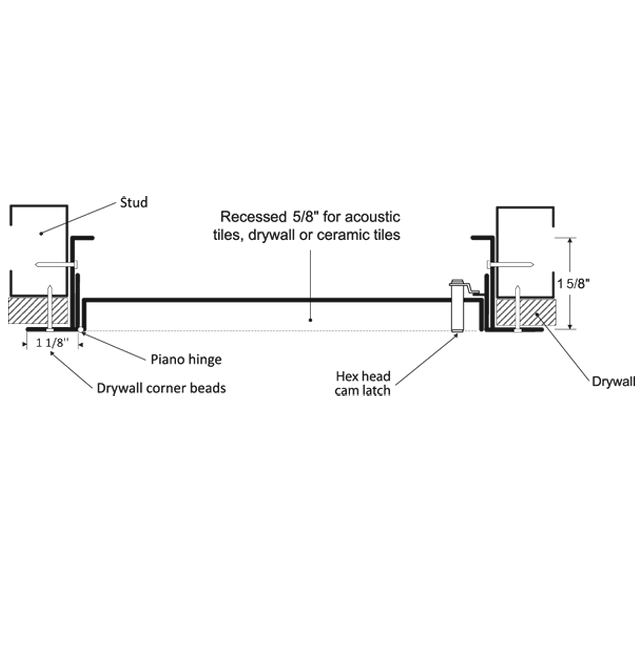

Designed with a 5/8″ recessed door, this panel accepts ceramic tiles, acoustical tiles or any other type of material in order to blend in with the surface finish.

Details of the AHA-GYP Recessed Access Door with Drywall Bead Flange:

• Installation:  Walls and ceilings
• Material:  16 gauge Steel
• Door Recess: 5/8" recess

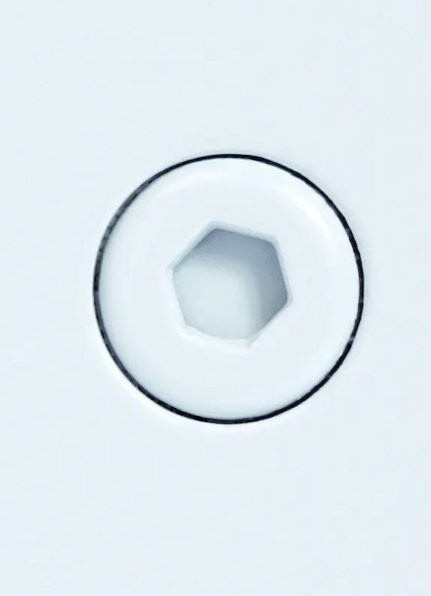

• Locking mechanism:  Allen hex head cam latch.  Requires a standard allen key to open the access door
• Frame: 1 5/8 " in depth, made of steel
• Hinge:  Piano hinge
• Flange:  22-gauge galvanized steel, 1 ⅛" drywall bead flange

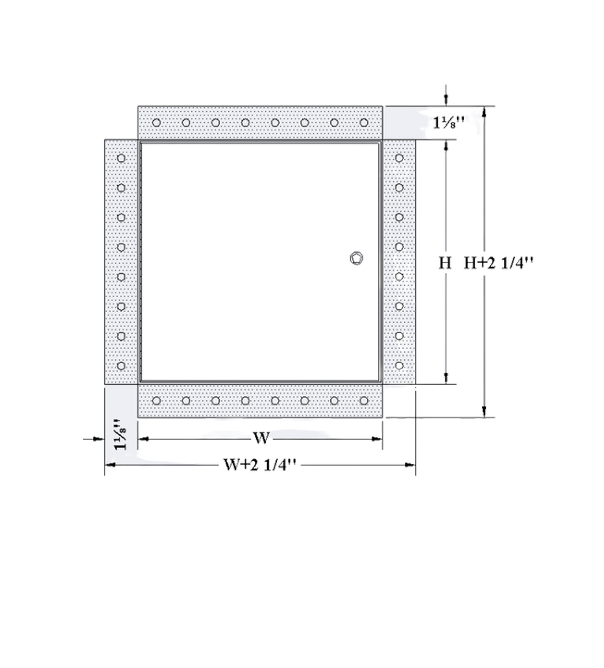

• Rough Opening Requried:  Door sizes + ¼ " or + 6mm
• Finish:  Powder Coat Primed White
• Special Sizes:  Other sizes available upon request
