ABH PT200 Power Transfer Unit, Hardwired Wired Connection Information

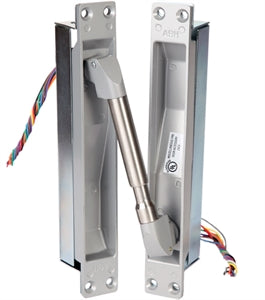

ABH PT200 POWER TRANSFER UNIT
ABH PT200 POWER TRANSFER UNIT
� (2) 18 AWG Wires
� Max. Rating: 24 VDC, 5A or 120 VAC NEC Class 3
ABH PT1000 POWER TRANSFER UNIT
� (10) 24 AWG Wires
� Max. Rating: 24 VDC, 1A
-
The ABH PT1000 is available with ABH Easy Connect (Suffix EZ) option. See inset image above.
� Click here for the PT1000 and PT200 Series Cut Sheet
� Click here for the PT1000 and PT2000 Series Template
DETAILS:
� The ABH Power Transfer PT200 & PT1000 provide the means of transferring electrical power from the frame to the door in a secure and discreet manner.
� The ABH PT200 & PT1000 unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.
� All metal construction including back boxes - NO PLASTIC PARTS.
� Ideal for high abuse or heavy traffic situations.
� The ABH Power Transfer PT200 & PT1000 us UL/ULC Listed for use on fire doors.
� Packaged individually with fasteners for wood, steel, or aluminum doors and frames.
� The ABH PT200 & PT1000 is for use on 1 3/4" thick doors.
� Not for use with swing-clear hinges, pocket pivots, butt hinges larger than 6�, 1-1/2� offset pivots, or center hung doors.
� The ABH PT1000 and PT200 are Proudly Made in the USA.
AVAILABLE FINISH:
� US28 - Brushed Aluminum
� S5 - Powder Coated Dark Bronze to match US10B Finish
CROSS REFERENCE:
� ABH PT200.....Von Duprin EPT2
� ABH PT1000.....Von Duprin EPT10
� ABH PT1000EZ.....N/A
