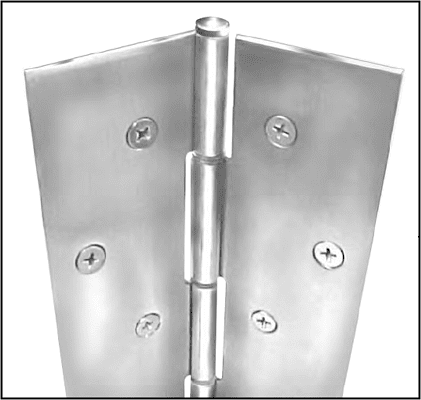

ABH A5500 Stainless Steel Continuous Hinge - 12 Gauge - Full Mortise/Concealed

ABH A5500 Stainless Steel Continuous Hinge - 12 Gauge
- Full Mortise/Concealed Type

ABH A5500 full concealed 12 gauge stainless steel hinges are they brand name when you need a extra heavy duty hinge.  Type 304 grade stainless steel, for doors up to 48" wide weighing up to 900 lbs!

Details and product specs of the ABH A5500 12 gauge stainless steel hinge:

Material/Finish:	Type 304 x # 4 satin finish (US32D) stainless steel
Thickness:	12 gauge (extra heavy duty)
Door Thickness:	For doors up to 2 1/4" thick
Fasteners Provided:	12-24 x 1/2" undercut machine screws, stainless steel
Lengths Available:	6'-8" = 78 3/4" exact height 7'-0" = 83 1/8" exact height 7'-2" = 85" exact height 8'-0" = 95" exact height 10'-0" = 118 3/4" exact height...call 888.634.3667 for special quote on 10'-0".
Fire Rating:	Tested and certified by UL (USA & Canada) on 4'-0" x 10'-0" fire rated doors, based on the following: - 20 minutes: wood doors - 90 minutes: hollow metal and composite core wood fire doors - 3 hours: hollow metal doors
Mfg Model #:	A5500
UPC Code:	N/A
MDI Supply Item #:	ABH-A5500-32D
Packaged & Sold:	Individually

ABH A5500 Stainless Steel Continuous Hinge - 12 Gauge
- Full Mortise/Concealed Type

ABH A5500 full concealed 12 gauge stainless steel hinges are they brand name when you need a extra heavy duty hinge. Type 304 grade stainless steel, for doors up to 48" wide weighing up to 900 lbs!

Click here for a cut sheet on the ABH A5500 Stainless Steel 12 Gauge Full Mortise Hinge.
