ABH A530HD Half Surface Continuous Gear Hinge - Aluminum

ABH A530HD HALF SURFACE ALUMINUM CONTINUOUS GEAR HINGE

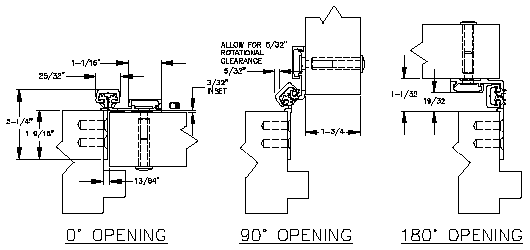

»  Half Surface

»  Narrow Frame Leaf - 1 9/16"

»  3/32" Inset

Click here to download the ABH A530HD Half Surface Continuous Hinge Cut Sheet

Templates for the ABH A530HD Half Surface Continuous Geared Hinge

»  A530HD-83-Template

»  A530HD-85-Template

»  A530HD-95-Template

ABH A530HD Aluminum Continuous Hinge Details:

»  Type:  Half Surface, Narrow Frame Leaf, 3/32" Inset.

»  Material:  Extruded 6063-T6 Aluminum Alloy w/ Polyacetal Thrust Bearings.

»  Color:  Clear Anodized Aluminum & Dark Bronze Anodized.

»  Door Type: For 1 3/4" thick doors, standard & heavy duty up to 450 lbs.

»  Door Reinforcement: None required.

»  Frame Reinforcement: Over 200 lbs reinforce with 16 gauge channel.

»  For use with flush aluminum, glass rail hollow metal or wood doors.

»  Handing: Hinge is non-handed unless cut in the field.

»  Fire Rating: UL listed for up to 3 hour rated doors w/ use of a steel stud.

»  Screws: Self drilling thread forming Tek screws and Sex Bolts for the door.

See cut sheets and templates (hyperlinks above) for more details.
