ABH A240HD Continuous Hinge - Full Mortise/Concealed

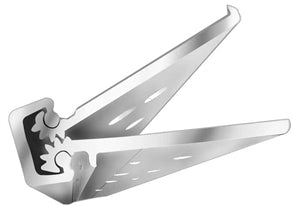

ABH A240HD ALUMINUM CONTINUOUS GEARED HINGE

»  Full mortise/Concealed Leaf Hinge

»  Door Edge Protector Lip

»  3/32" Inset

Click here to download the ABH A240HD Continuous Hinge Cut Sheet

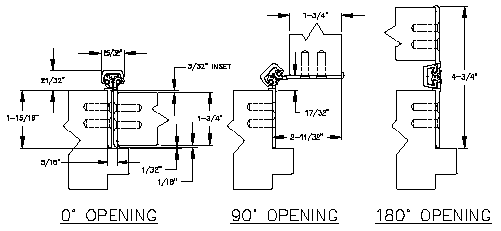

Templates for the ABH A240HD Continuous Geared Hinge

»  A240HD-79-Template

»  A240HD-83-Template

»  A240HD-85 Template

»  A240HD-95 Template

ABH A240HD Aluminum Continuous Hinge Details:

»  Type:  Full Concealed, Flush Mount, No Inset.

»  Material:  Extruded 6063-T6 Aluminum Alloy w/ Polyacetal Thrust Bearings.

»  Color:  Clear Anodized Aluminum & Dark Bronze Anodized.

»  Door Type: For 1 3/4" thick doors, standard & heavy duty up to 450 lbs.

»  Door Reinforcement: None required.

»  Frame Reinforcement: Over 200 lbs reinforce with 16 gauge channel.

»  Handing: Hinge is non-handed unless cut in the field.

»  Fire Rating:

    UL Listed for 90 minute rated doors;

    UL listed for up to 3 hour rated doors w/ use of a steel stud.

»  Screws: Self drilling thread forming Tek screws.

See cut sheets and templates (hyperlinks above) for more details.
