ABH A110HD Continuous Hinge - Full Mortise/Concealed

ABH A110HD ALUMINUM CONTINUOUS GEAR HINGES
Full mortise/Concealed Leaf Hinge

ABH A110HD Aluminum Continuous Hinge Details:

»  Type:  Full Concealed, Flush Mount, No Inset.
»  Material:  Extruded 6063-T6 Aluminum Alloy w/ Polyacetal Thrust Bearings.
»  Color:  Clear Anodized Aluminum & Dark Bronze Anodized.
»  Door Type: For 1 3/4" thick doors, standard & heavy duty up to 450 lbs.
»  Door Reinforcement: None required.
»  Frame Reinforcement: Over 200 lbs reinforce with 16 gauge channel.
»  Handing: Hinge is non-handed unless cut in the field.
»  Fire Rating:
     UL Listed for 90 minute rated doors;
     UL listed for up to 3 hour rated doors w/ use of a steel stud.
»  Screws: Self drilling thread forming Tek screws.

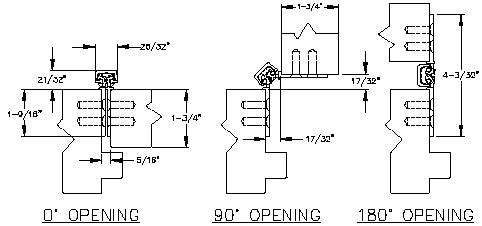

See cut sheets and templates on Downloads Tab for more details.

ABH A110HD ALUMINUM CONTINUOUS GEAR HINGES
Full mortise/Concealed Leaf Hinge

Click here to download the ABH A110HD Continuous Hinge Cut Sheet

Templates for the ABH A110HD Continuous Geared Hinge
» A110HD-79-Template
» A110HD- 83-Template
» A110HD- 85-Template
» A110HD- 95-Template
