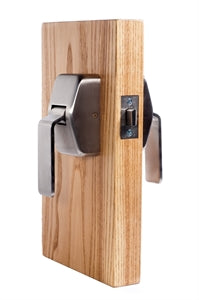

ABH 6000 Series Push/Pull Hospital Latch, US32D-Satin Stainless Steel

ABH 6000 SERIES HOSPITAL LATCH - PUSH-PULL
The 6000 Series Push/Pull Hospital Latch offers versatility and durability for commercial and institutional settings. These models are designed for commercial and institutional doors up to 1-3/4" - 2-1/4", including fire doors. The sleek design has a short throw angle, allowing the door to be opened with an easy push or pull action, even when hands are not free.

ABH 6000 HOSPITAL LATCH FEATURES & DETAILS:
»  Non-handed (except for engraved models).
»  Push/pull latch can be mounted with the handles up, down or horizontal without any modification.
»  Available with 2 3/4” or 5” backset latches.
»  Standard T-Strike or 4 7/8" ASA strike.
»  Includes all required fasteners.
»  Compact non-handed covers provide maximum clearance between the handle and door.
»  UL listed for all fire doors.
»  Available in BHMA finishes.  Contact MDI for a finish other than what's shown above.
»  Lead lining is available.  Contact MDI for more information.
»  Trim can be mounted up, down, horizontally or vertically.
»  Meets ADA requirements.
»  Uses standard 161 lock prep (2 1/8" hole) in door w/ thru-bolt prep to install trim.  See template.
»  Standard for 1 3/4” thick doors.

ABH 6000 SERIES HOSPITAL LATCH - PUSH-PULL
The 6000 Series Push/Pull Hospital Latch offers versatility and durability for commercial and institutional settings. These models are designed for commercial and institutional doors up to 1-3/4" - 2-1/4", including fire doors. The sleek design has a short throw angle, allowing the door to be opened with an easy push or pull action, even when hands are not free.

Click here for ABH 6000 Hospital Latch Cut Sheet

Click here for ABH 6000 Hospital Latch Installation Instructions and Template
