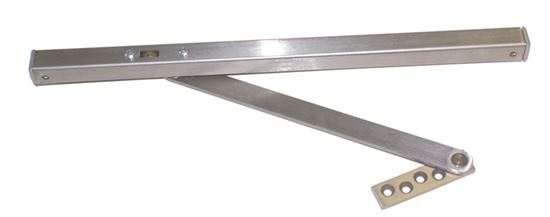

ABH 4400-F Surface Mounted Overhead Friction Hold-Open, US32D-Satin Stainless Steel

ABH 4400-F Surface Mounted Overhead Friction Hold-Open, US32D-Satin Stainless Steel

SKU: SKU:ABH-4431F-US32D

Availability : Usually ships in 2-3 business days

Regular price $85.00
Regular price $255.00 Sale price $85.00
Sale Sold out
Shipping calculated at checkout.

Product Options:

View full details

ABH 4400 Series Surface Mounted Over Head Stops & Holders
ABH Overhead Holders and Stops are the most common way of protecting commercial and institutional doors from common day to day abuse. Stops and Holders are mounted overhead and also protect the abuse of the hardware such as closers and hinges from wear and tear. ABH offers the widest variety of Overhead Holders and Stops for almost any standard or heavy duty application. ABH Overhead Holders and Stops are made in the U.S.A.



Door Frame Opening

Model Number

 4400-H

 4400-S

4400-F

Hinges, Swing

Clear,Offset Pivots

 Center Hung

Hold Open

Stop

Friction

18” - 23 15/16"

22” - 27 7/16"

4411

4421

4431

24” - 29 15/16"

27 1/2” - 33 7/16"

4412

4422

4432

30” - 35 15/16"

33 1/2" - 38 15/16"

4413

4423

4433

36” - 48”

39” - 48”

4414

4424

4434

ANSI Code



C05511

C05541

 C05531


Details and product specs of the ABH 4400 series over head stop & holder:

Series: 4400 Series - Surface Mounted
Door Thickness/Type: 1 3/4" - 1 7/8" / Single Acting Doors Only

Finish:

US32D/630 - Satin Stainless Steel

Type:

Stop, hold-open and friction functions available (see description below)
UL Listed Yes, for application on labeled fire doors.
Functions:

Hold Open (4400-H):
Hold Open – Door will stay held open at the selected degree of opening. Hold open adjustment screw controls the amount of force required to disengage the hold open mechanism.

Stop (4400-S):
Door stops at selected degree of opening.

Friction (4400-F):
Most commonly used on doors without closers. Door
will virtually stay held open at the selected degree of opening. Friction tension adjustment screw controls the amount of resistance when opening and closing the door.

Applications: For interior use on moderate traffic and medium weight doors.
Shock Absorbtion: Shock absorbtion spring provides 3° to 5° cushion before dead stop.
Handed: Non-handed
Fasteners: Standard fasteners supplied with sex bolts for 1-¾” to 1- 7/8” thick door
MDI Supply Item #: ABH-4400-H, ABH-4400-S, ABH-4400-F
Mfg Model #: 4400
Packaged & Sold: Individually
