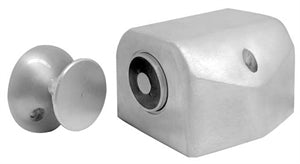

ABH 2600 ELECTROMAGNETIC DOOR HOLDER

Single Floor Mount

Click here for the ABH 2600 Electromagnetic Door Holder Cut Sheet

Click here for the ABH 2600 Single Floor Mounted Magnetic Holder Installation Template

Click here for the ABH Mag Holder Tech Data Sheet

ABH 2600 ELECTROMAGNETIC DOOR HOLDER DETAILS:

>  For use on fire/smoke barrier doors hold open until released by a remote switching device.

>  The ABH 2600 can also be used to just hold door.

>  Special Electrical Circuit field selectable Tri-Voltage - 12V DC, 24V AC/DC, 120V AC

>  30-45# holding power

>  Easy wire installation with quick insert connector

>  Armature is thru-bolted for security and can be provided with any projection required.

>  Armature extensions available for unlimited projections and/or 120� Swivel Extension

>  Armature design will compensate for centerline misalignment up to 1/4" w/ double swivel & pivoting ball

>  UL and ULC listed

>  California State Fire Marshall Listed

>  City of New York MEA Approved

>  Low current design

>  Meets ANSI/BHMA requirements 156.15

AVAILABLE FINISHES FOR THE ABH 2600 ELECTROMAGNETIC DOOR HOLDER:

>  Available in US28 as standard and typical ship in 2-3 business days.

>  Optional sprayed finishes typically ship in 3-5 business days.
