ABH 0195 Pivot Set - 3/4-inch Offset, US32D-Satin Stainless Steel

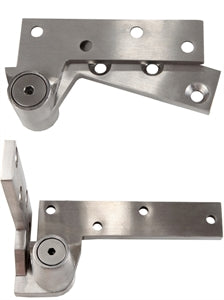

ABH # 0195 PIVOT SET - 3/4" OFFSET
Heavy duty pivot set - top & bottom pivot included.

ABH 0195 Pivot Sets Details:

»  Handed - Specify when ordering

»  For interior or exterior doors up to 4'-0" x 8'-0"

»  Weight capacity to 450 lbs

»  0180 top pivot included

»  019 intermediate pivot factory recommended

»  Bottom pivot mounted into side jamb

»  3/16" vertical arm adjustment after installation

»  BHMA/ANSI C07131/3530A (modified)

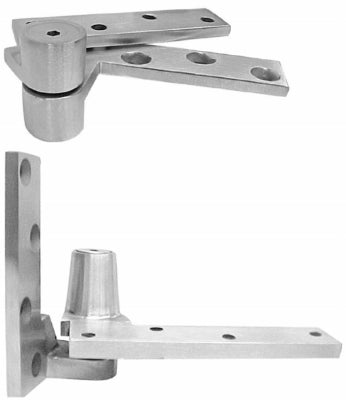

ABH # 0195 PIVOT SET - 3/4" OFFSET
Heavy duty pivot set - top & bottom pivot included.

Click here for ABH 0195 offset pivot cut sheet

Click here for ABH 0195 offset pivot template

Click here for ABH pivot definition offset
