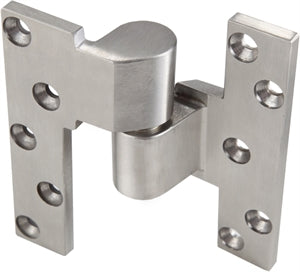

ABH 019 Intermediate Pivot - 3/4-inch Offset, US32D-Satin Stainless Steel

ABH # 019 INTERMEDIATE PIVOT - 3/4" OFFSET
Heavy Duty Intermediate Pivot

 ABH 019 Intermediate Pivot Details:

»  Handed - Specify when ordering

»  Works in conjunction with the ABH 0195 Pivot Set (top/bottom)

»  For interior or exterior doors up to 4'-0" x 8'-0"

»  Full mortise design

»  Needle bearing supplied standard.  Can be used on heavy duty doors.

»  Weight capacity to 450 lbs (when used with the ABH 0195 pivot set).

»  US32D (satin stainless steel) model UL listed for use on labeled doors.

»  BHMA/ANSI C07131/3525

ABH # 019 INTERMEDIATE PIVOT - 3/4" OFFSET
Heavy Duty Intermediate Pivot

Click here for ABH 019 intermediate pivot cut sheet

Click here for ABH 019 intermediate pivot template

Click here for ABH pivot definition offset
