4 1/2" Hinge Reinf. x .134 (Standard Weight), A40 Galv Steel

4 1/2" x 4 1/2" Hinge Reinforcement x .134 Foir use with Square Corner HInges

For use in HM Doors/frames only

4 1/2" x 4 1/2" Hinge Details:

»  For use w/ HM (hollow metal) steel frames & HM steel doors.

»  A40 galv. steel reinforcement bracket.

»  For use with standard weight commercial hinges x .134.

INSTALLATION METHOD:

» 1.  Install into desired location in frame to match-up with door by a licensed welded.

» 2.  All welds must be touched-up with commercial quality primer.

» 3.  This hinge reinforcement comes with pultrusion dimples for spot-welding.

* Please note:

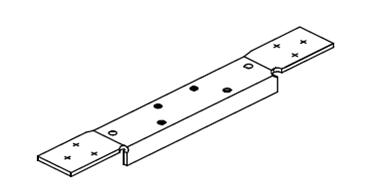

»  Diagram and images are for illustration purpose only and actual product may vary, but application, function and installation will be remain same.
