Pemko 297AV Standard Perimeter Gasketing with Eco-V Insert Vinyl Insert, Mill Aluminum Information

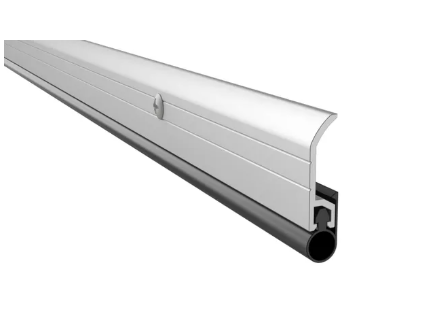

Pemko 297 Standard Perimeter Gasketing w/ Eco-V-Insert
The 297 Series Standard Perimeter Gasket features an Eco-V (297V) vinyl insert.
Features of the Pemko 297 Perimeter Frame Gasketing w/ Eco-V-Insert:
- Can seal gaps up to the depth of its seal
- Punched on 6" centers with slotted holes for adjustment
- Available with self-adhesive tape and TEK screws for easy installationncealed fasteners
- GREENGUARD Gold certified, eco-friendly material
- Economical bio-based material, contains no phthalates or heavy metals
- Assists building and design teams with emissions criteria in green building rating programs
- Highly versatile, easily deployable for a variety of building applications
- Surpasses the quality and durability of traditional vinyl, resulting in a longer service life and less need for replacement
- Meets the Pemko gasketing standards for compression and tensile strength, which provides exceptional energy-saving performance
- Prevents air leakage
- Heavy metal free
- Plasticizers from renewable carbon sources, stabilizers are organic-based and zinc free
- Limited ultraviolet and weather resistance, good chemical resistance to adhesives and most mild cleaning solutions
- Base Material: Aluminum
- Fasteners: Self-Adhesive , PHSMS #6 x 5/8"

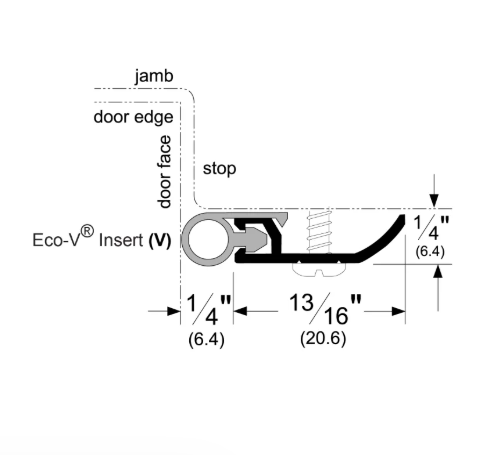

- Height: 1/4"
- Length: 185" (Max length available)
- Mounting Location: Side of Frame
- Mounting Type: Screw applied
- Finish: Mill Aluminum
Certifications:
- GREENGUARD Gold Certified
- UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- ASTM E-283-04 (2012)
- ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
Availability:
- Usually Ships in 1-2 Weeks
