MDI AST-84 Flat Security Steel Astragal, 11 Gauge, 7'-0" x 2" x 1/8"

MDI AST-84 Flat Security Steel Astragal, 11 Gauge, 7'-0" x 2" x 1/8"

Metropolitan Door Industries

SKU: MDI-AST-84

Availability : Usually Ships in 1-2 Business Days

$45.00
$45.00
Sale Sold out
Shipping calculated at checkout.
Size: 7'-0" Length (can be field-trimmed)

Click here for a cut sheet on the AST-84 Flat Steel Astragal

View full details

MDI AST-84 Flat Security Steel Astragal, 11 Gauge, 7'-0" x 2" x 1/8" Information

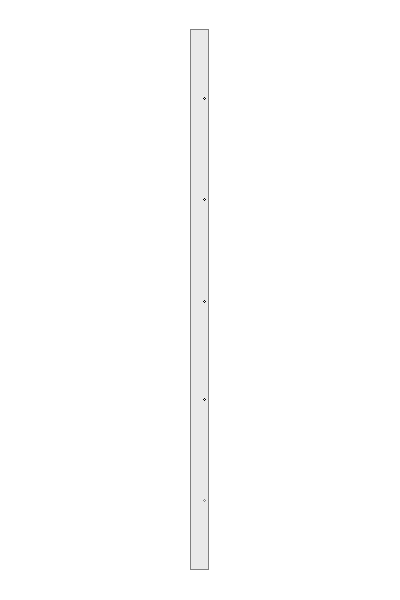

AST-84 Flat Security Steel Astragal x 7'-0"
Flat astragals add security and cover gaps between doors and can be notched for strike as needed.

This flat steel astragal is our # 1 most popular Astragal.  Used day in and day out on typical HM steel double doors.

Features & Benefits of the MDI AST-84 Flat Steel Astragal:

  • Base Material: 11 Gauge A40 Galv Steel
  • Door Edge: Used on Square & Beveled Edge Doors
  • Fasteners: Supplied with 12-24 Pan Head Self-Tapping Screws
    • Fastener/screw hole location preps @ 10.25 CTC (Center-to-Center)
  • Handing: Non-handed
  • Strandard Dimensions:
    • Nominal Height: 84"
    • Net Height: 83 1/8"
    • Overall Height: 1/8"
    • Width: 2"
  • Application: Applied to the face of a door
  • Purpose: Covers gap between the door and jamb, full height
  • Prevention: Prevents prying and manipulation
  • Finish: A40 Galv Steel.  Can be primed but is not necessary.  Finish painting by others.
  • Brand: Metropolitan
  • Item Sku: MDI-AST-84
