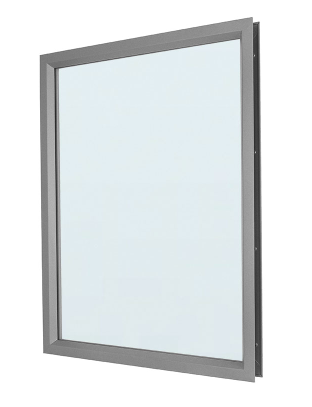

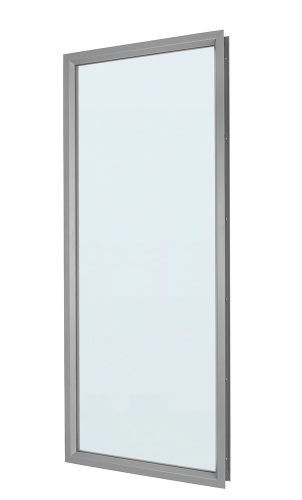

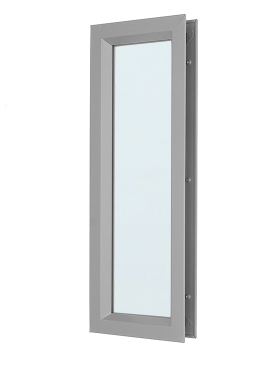

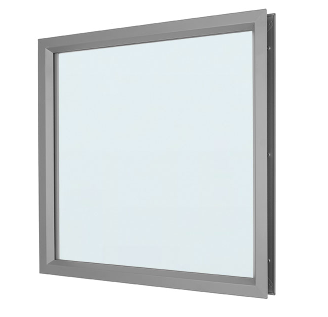

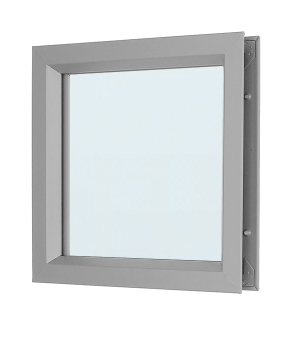

NGP L-FRA100 Lite Kit with 3/16″ Clear PYRAN® Platinum F Fire/Safety Rated Ceramic Glass , 90 Minute Fire-Rated Safety Glass - Complete Kit w/ Glass

NGP L-FRA100 Low Profile Design Lite Kit Complete w/ 90 Min Fire/Safety Rated Clear Pyran® Platinum F Ceramic Glass - for 1 3/4-inch Thick Doors

National Guard Products L-FRA100 Vision Kit & Fire Rated Glass

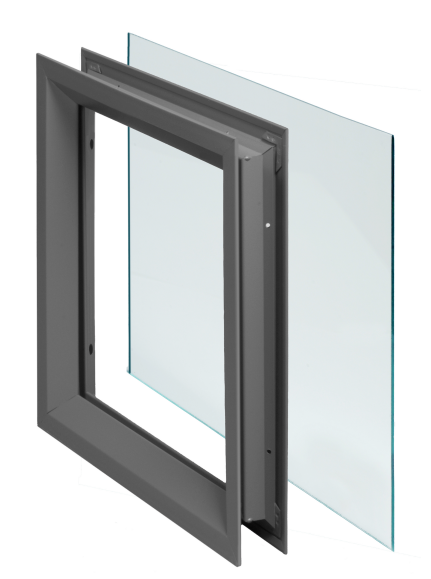

Low Profile Lite Kit (L-FRA100) with Pyran F Ceramic Fire Rated Glass (Pyran F) and Glazing Tape (L-GT-118) on Both Sides

Features & Specs of the NGP L-FRA100 Complete Kit & Fire Rated Glass:

• For 1-3/4" Thick Doors Only
• 18 Ga. Steel
• Mitered and Welded Corners
• Welded Reinforcing Clips at Corners
• Countersunk Mounting Screw-Holes
• Fasteners Included: #8 X 1-3/4" Phillips Head SMS
• Special order sizes are available
• Finish: Gray Primer (GPZ) Powder Coat Finish - Standard
• Fire/Safety Rated Ceramic Glass Included (CPSC Cat II)
• Comes with Adhesive Closed Cell Foam Glazing Tape
• Complete Kit is Made in the USA.

Size Note: If you don't see a size you need, give us a call at 888.634.3667 or send us an email to orders@mdisupply.com and we'll be happy to provide a price quote.  Please include your full billing & shipping info, contact person and phone number.

What's Included:

• The L-FRA100 Low Profile Steel Lite Kit x 90 min fire labeled *
• 3/16" (5mm) Thick Pyran Platinum F Glass Ceramic Featuring:
  • Fire Rated & Safety Rated Glazing
  • Heavy Duty 7 Mil Durable Safety Film
  • Neutral Coloration - Clear and Wireless
  • Advanced Manufacturing Process Eliminates the Need for Surface Polishing

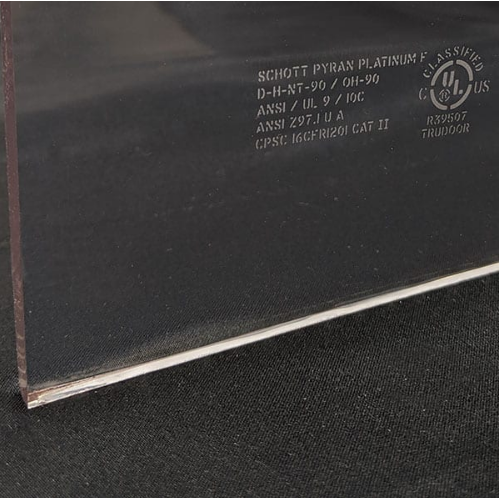

  • Etched with UL Classification on Each Piece of glass.  Small pieces of glass (up to 100 sq. inches visable glass) will have the 180 min box checked and larger than that will have the 90 min box checked.
• L-GT-118 Closed Cell PVC Glazing Tape: 3/8" wide x 1/8" thick (adhesive both sides), glazing tape color is black.
• Fasteners: #8 X 1-3/4" Phillips Head SMS

Testing Certifications & Code Compliance:

• CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
• POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
• STC 31 Rating
• Fire-Rating Information: Certified by UL to ANSI/UL10B, ANSI/UL10C, CAN/ULC-S104, ULC CAN4-S106
• Impact Safety Rating Information: Meets ANSI Z97.1, Class A
• Meets CPSC 16CFR 1201 (Category I and II)
• Complies with IBC Requirements for Use in Doors
• Closed cell PVC Foam Glazing Tape with Adhesive Both Sides
• 3/8" Wide x 1/8" Thick
• Designed for Use on 1-3/4" Thick Doors Manufactured Within Door Industry Tolerance of +/- 1/16"

Availability:  Usually Ships in 3-5 Business Days After Order

PYRAN® is a registered trademark of SCHOTT AG
