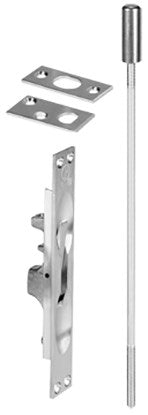

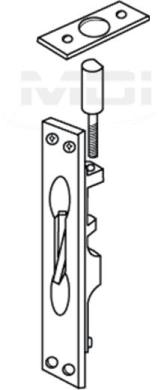

Rockwood 555 Extension Flush Bolt (Set)

Rockwood 555 Mortise Flush Bolts
Lever Extension Flush Bolt - Top & Bottom Set

SPECIFICATIONS:
• For Fire Rated Hollow Metal Swinging Doors measuring up to 4'w x 10'h rated up to and including 3 hours.
• Material: Brass Fastener: 8 ea. #8 x 3/4 FH Combo Screws

Features:
• Fits ANSI A115 door and frame preparation.
• 3/4" bolt throw, 3/4" rod backset.
• 12" rod length (center of face to bolt end - retracted).
• 1-1/2" adjustable bolt head.

Options:
• Other size top rods available are 18", 24", 36", 48". (12" rod always supplied for the bottom).
• Extra long bolt head - 2-1/2" (or to your specification).
• Use #570 Dust Proof Strike to prevent dirt blocking bottom strike.

SIZE:
• Face Plate: 1” x 6-3/4”
• Strike: 15/16” x 2-1/4”
• Guide: 1” x 2”
• Weight: 1.5 lbs./2

ANSI A156.16: L04251

This product is sold in "set" quantity. Each set contains 1-top and 1-bottom mortise flush bolt.
