Pemko 314 Surface Mount Door Bottom

Pemko 314 Surface Mount Door Bottom

Pemko Gasketing & Saddles

SKU: PEM-314CN-36

Availability : Usually ships in 1-2 weeks.

$40.00
$69.00 $40.00
Sale Sold out
Shipping calculated at checkout.

Product Options:
Certifications: ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems & Greenguard Gold
Benefit: Helps prevent the infiltration of drafts, dust, water, and light

Click here for a Cut Out Sheet on the Pemko 314 Surface Mount Door Bottom

Click here for a Installation Instructions on the Pemko 314 Surface Mount Door Bottom

View full details

Pemko 314 Surface Mount Door Bottom Information

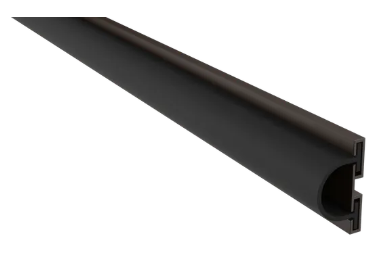

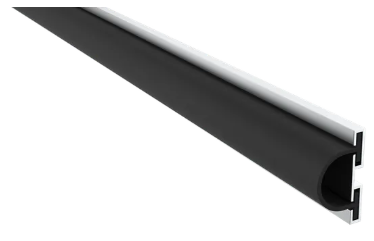

Pemko 314 Surface Mount Door Bottom

The 314_N Series offers a versatile surface or mortised specialty door bottom featuring an EPDM bulb, supplied in NET length as ordered and suitable for surface or mortised applications. It can be used as a door bottom or meeting stile gasket, and effectively helps prevent the infiltration of drafts, dust, water, and light, although it is not recommended for use on beveled edge pairs of doors.

Features of the Pemko 314 Surface Mount Door Bottom:

  • Surface or mortised applications.
  • Supplied NET length (as ordered).
  • May also be used as a meeting stile gasket.
  • Does not work well on beveled edge pairs of doors.
  • Helps prevent the infiltration of drafts, dust, water, and light.
  • Can be field-trimmed by the installer for a perfect fit to your required size.

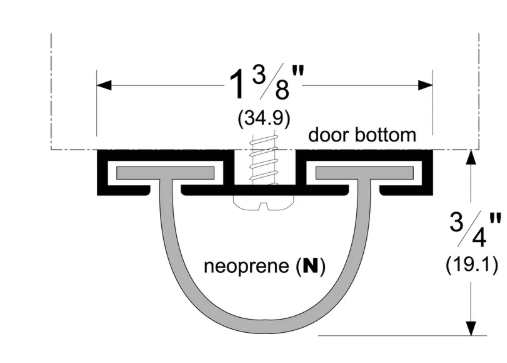

Specifications of the Pemko 314 Surface Mount Door Bottom:

  • Base Material: Aluminum
  • Fasteners: PHSMS #6 x 5/8"
  • Overall Height: 3/4"
  • Width: 1 3/8"
  • Finish:
    • CN-Clear Anodized Aluminum
    • DN-Dark Bronze Anodized Aluminum
    • BSPN-Black Suede Powder Coat

Certifications:

  • GREENGUARD Gold Certified
  • ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems

Availability:

  • Ships in 1-2 weeks
