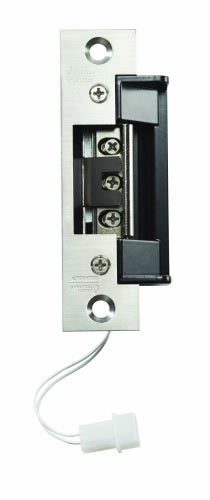

Alarm Controls AES-200 Electric Strike, for use with Cylindrical Locksets, US32D-Satin Stainless Steel

Alarm Controls AES-200 Electric Strike
Designed for medium-duty applications, the all-in-one AES-200 offers dual voltage and field selectable fail secure/fail safe operation. Deep latch cavity accommodates cylindrical locksets with a 5/8" throw in steel, wood or aluminum frames. Easy to install, east to connect and very easy to use with the built-in-buzzer.

Details and product specs of the Alarm Controls AES-200 Heavy Duty Electric Strike:

Warranty:	Factory Limited Lifetime Limited Warranty
Specifications::	BHMA Grade 2, 1,000 lb. static strength Factory tested to 500,000 cycles Field selectable, fail secure/fail safe Universal 12 through 24VAC or VDC input Horizontally adjustable and pre-load capable Strike Depth 1-1/2" with 5/8” throw Fully reversible for right or left hand doors Built in buzzer - sounds when voltage is applied
Standard Features:	Electric strike kit includes: – AES-200 strike body – 4 7/8” round corner faceplate – 4 7/8” square corner faceplate 7-15/16” round corner faceplate available - Model number STR00004 Current draw: 12VAC @ 200mA, 24VAC @ 70mA Current draw: 12VDC @ 130mA, 24VDC @ 70mA
Finish:	US32D/630 - Satin Stainless Steel
Certifications:	Grade 2 UL294
Fire Rating:	None.  This electric strike is not for use on fire rated doors.
Mfg Model #:	AES-200
MDI Supply Item #:	AC-AES-200-630
Packaged & Sold:	Individually

Alarm Controls AES-200 Electric Strike
Designed for medium-duty applications, the all-in-one AES-200 offers dual voltage and field selectable fail secure/fail safe operation. Deep latch cavity accommodates cylindrical locksets with a 5/8" throw in steel, wood or aluminum frames. Easy to install and connect.

Details and product specs of the Alarm Controls AES-200 Heavy Duty Electric Strike:

Catalog:	Catalog Section - AES-200 Electric Strike
