Air Louvers VSL PAK, 6-inch x 27-inch (4-inch x 25-inch Viewable Glass), Metal Vision Kit with Glass Included, for 1 3/4" Thick Doors, Dark Bronze
Air Louvers VSL PAK, 6-inch x 27-inch (4-inch x 25-inch Viewable Glass), Metal Vision Kit with Glass Included, for 1 3/4" Thick Doors, Dark Bronze
SKU: SKU:AL-VSL-0627B-PAK
Product Options:
Couldn't load pickup availability
Air Louvers VSL PAK, 6-inch x 27-inch (4-inch x 25-inch Viewable Glass), Metal Vision Kit with Glass Included, for 1 3/4" Thick Doors, Dark Bronze Information
Air Louvers VSL PAK: Metal Vision Kit with Glass & Glazing Tape
VSL Slimline steel vision kit, continuous glass retainer and countersunk mounting holes. Self-attaching, leaving corridor side (or outside) of frame free of fasteners for aesthetic and security purposes. Durable bronze (dark brown) powder coat finish.
Air Louver VSL PAK lite kits are for use on 1 3/4" thick doors only.
The PAK consists of a metal vision kit, glass for that vision kit, glazing tape, installation fasteners (screws), and all boxed together as a kit for quick and easy installation into existing doors that require a window installed. Cut-out of existing door and installation of glass and vision kit by others.
Order Size (Door Cut-Out Size) - 2" = Viewable Glass Size
This item is special order, therefore, once ordered it cannot be canceled, returned or exchanged
Details and product specs of the Air Louver VSL PAK :
| Door Thickness Required: | 1 3/4" |
| Material & Construction: | 20 gauge colled rolled steel frame with radius corners and welded. |
| Vision Kit Model & Style: | Low Profile Beveled Vision Lite for Fire-Rated Doors. Self-Attaching Frame has Single-sided Fasteners. 1-1/4" trim with radius corners, mitered and welded. Continuous glass retainer, countersunk mounting holes in the bevel on non-corridor side. |
| Application: | Can be used in 1 3/4" thick steel, wood or fiberglass doors. |
| Fasteners Supplied: | #8 x 1" flathead phillips SMS to match finish. |
| Glass Supplied: | 3/16"- 1/4" supplied with the PAK. Visible light is 2" under rough opening size. Glass size is 1" under order size. |
| Vision Kit Finish Color: | Bronze (B): Dark Brown. Other finishes are available by special order. Extended lead-time does apply with special orders. |
| Fire-Rating, Testing & Listings: | When installed in properly rated and approved door, ratings up to 3 hours can be achieved, depending on the glazing used. See glazing ratings for maximum exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure. |
| Glass Supplied: |
TEMP: Tempered Glass: 1/4" thick. Cat. II Impact Rated (Not Fire Rated) |
| Glazing Ratings: |
Fire Rating Note: Glazing in PAK will be marked with highest available rating based upon the exposed glazing area within the lite kit. See Glass Cut Sheets and "Glass Ratings & Spec Details" Tab for more detail on specific ratings for each glass type and size. |
| Packaged & Sold: | Individually |
| NOTES: |
Please note that the width and height cannot exceed the maximum exposed glazing area measurement. Glass ceramics do not act as a barrier to radiant or conducted heat transfer (ASTM E119/UL 263) and as such, use in openings with fire ratings of 60 minutes or greater may require approval from the local authority having jurisdiction (AHJ). Interpretation of Fire and Building Codes may vary. Consult with the Local Authority Having Jurisdiction (AHJ) to determin the appropriate standards. |
|
Air Louvers VSL PAK: Metal Vision Kit with Glass & Glazing Tape
VSL Slimline steel vision kit, continuous glass retainer and countersunk mounting holes. Self-attaching, leaving corridor side (or outside) of frame free of fasteners for aesthetic and security purposes. Durable bronze (dark brown) powder coat finish.
Air Louver VSL PAK lite kits are for use on 1 3/4" thick doors only.
The PAK consists of a metal vision kit, glass for that vision kit, glazing tape, installation fasteners (screws), and all boxed together as a kit for quick and easy installation into existing doors that require a window installed. Cut-out of existing door and installation of glass and vision kit by others.
Order Size (Door Cut-Out Size) - 2" = Viewable Glass Size
This item is special order, therefore, once ordered it cannot be canceled, returned or exchanged
Glass Ratings & Spec Details of the Air Louver VSL PAK:
| Door Thickness Required: | 1 3/4" |
| Fire-Rating, Testing & Listings: | When installed in properly rated and approved door, ratings up to 3 hours can be achieved, depending on the glazing used. See glazing ratings for maximum exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure. Fire Rating Note: Glazing in PAK will be marked with highest available rating based upon the exposed glazing area within the lite kit. See Glass Cut Sheets and Glass Ratings & Spec Details (below) for more detail on specific ratings for each glass type and size. |
| Available Glass Options: | TEMP: Tempered Glass: WS: WireShield: PPF: Pyran Platinum F Glass: KFRF: KeraShield Select: |
| TEMP:TEMPERED GLASS | Fire Rating: None. Description: Heat treated clear safety glass that breaks into small particles. Thickness: 1/4" Weight: 2.5 lbs/sq. ft. Light Transmission: 86% approx. STC: 31 Impact Safety Rating: CPSC 16CFR 1201 (CAT I & II) Made in the USA |
| WS - WIRESHIELD | Fire Rating: 20 - 90 minutes (with hose stream) Doors - Steel x 45 Min Fire Rated: Doors - Steel x 90 Min Fire Rated: |

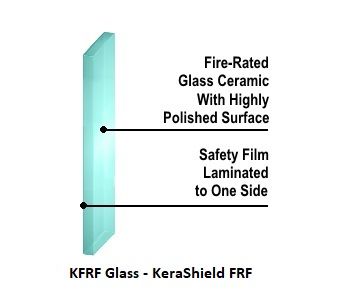

| KFRF - KERASHIELD SELECT | Fire Rating: 20 minutes - 3 hours (with hose stream) Doors - Steel x 45 Min Fire Rated (Non-Temperature Rise): Doors - Steel x 90 Min Fire Rated (Non-Temperature Rise): |
| PPF - PYRAN PLATINUM F | Fire Rating: 20 minutes - 3 hours (with hose stream) Doors - 20-90 Min Fire Rated (Non-Temperature Rise): Doors - x 3 Hours Fire Rated Temperature Rise Rated): |
| NOTES: | Please note that the width and height cannot exceed the maximum exposed glazing area measurement. Glass ceramics do not act as a barrier to radiant or conducted heat transfer (ASTM E119/UL 263) and as such, use in openings with fire ratings of 60 minutes or greater may require approval from the local authority having jurisdiction (AHJ). Interpretation of Fire and Building Codes may vary. Consult with the Local Authority Having Jurisdiction (AHJ) to determin the appropriate standards. |
 |
