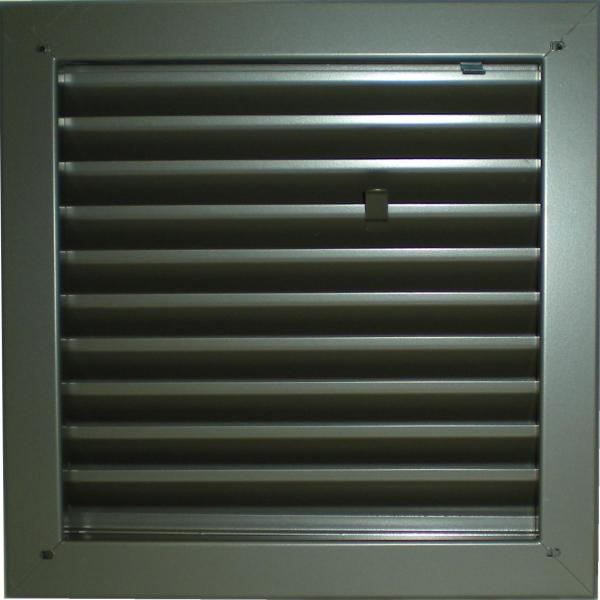

Air Louvers 1900A 24 inch x 18 inch Fire Rated Metal Louver Kit, Dark Brown
Air Louvers 1900A 24 inch x 18 inch Fire Rated Metal Louver Kit, Dark Brown
SKU: SKU:AIR-1900A-2418-B
Couldn't load pickup availability
Share



Air Louvers 1900A 24 inch x 18 inch Fire Rated Metal Louver Kit, Dark Brown Information

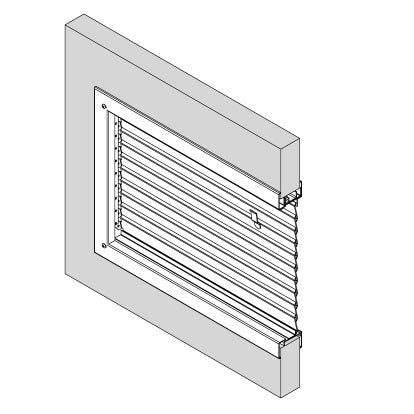

Air Louvers 1900A Fire Rated Adjustable Z-Blade Metal Louver Kit
Adjustable Z-Blade Louver with Fusible Link activated at 165 Degrees F is Ideal for Use in Steel and Composite Fire Doors up to 1-1/2 Hour Rating. The Self-Attaching Frame Style is Ideal for Installation in Existing Door Cutouts.
Louver Kit Specifications:
» |
Features: | Model 1900-A is a door louver that is listed by U.L. and WHI and is ideal for use in fire doors up to 1 1/2 hour rating. The listing mark is provided in the frame of the louver. |
» |
Material: | 18 gauge CRS frame and louver blades. |
» |
Construction: |

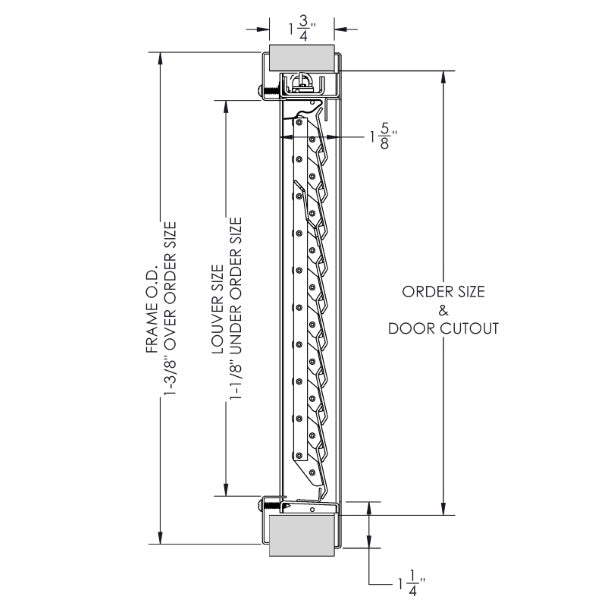

Mitered and welded corners; screws fastened through prepared frame into louver core; this mounting method leaves the corridor side of frame free of fasteners for aesthetic and security purposes.
Adjustable blades of 16 gauge cold rolled steel pivot on cadmium-plated steel rivets. The blades are operated by a manual trigger. A spring-loaded fusible link mechanism is incorporated into the design. Upon metlting of the link, the action bar is actutated thereby closing and locking all of the blades. Louver assembly is 1 9/16" deep. » Drilling holes in the door for installation is not required. |
» |
Door: | "For 1 3/4" thick doors. |
» |
Fasteners: | #8 x 3/4" Phillips head screws. |
» |
Finish: | Mineral bronze (dark brown) baked on powder coat. Louver kit can be field-painted to desired color. |
» |
Free Flow Area: | 45% free area. |
» |
Notes: |
1. Wait until you receive the louver kit to prepare your door for installation of the louver. 2. If your door is not fire rated then you may require a non-fire rated louver kit. Please see our 800-A1 louver kit. 4. Size is "width x height." |
