RAL Recessed Mill Aluminum Access Door with Drywall Insert with Hidden Flange Frame

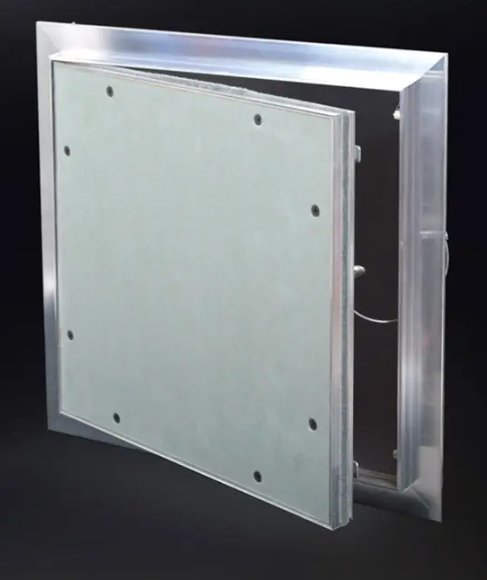

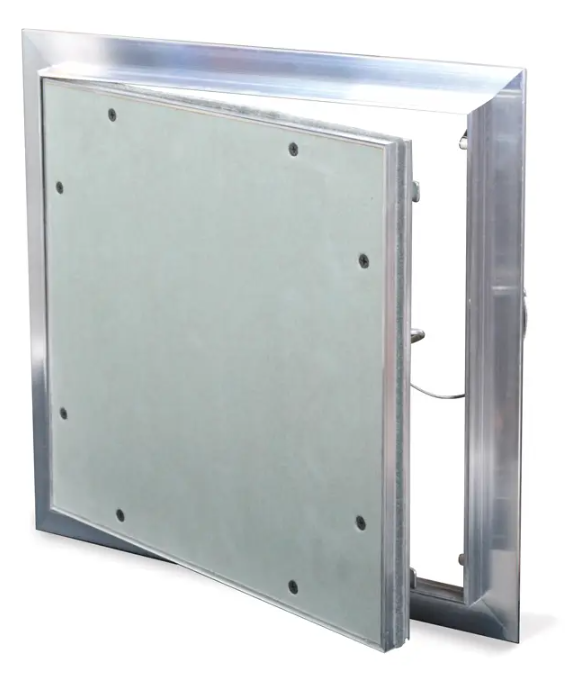

RAL Aluminum Recessed Access Door

The RAL Aluminum recessed access door has a removable door, drywall insert in door (1/2" or 5/8"), and a mill alumnium frame that blends perferctly with walls or ceilings.  Gasketing is standard on this door and restricts air and smoke infiltration.

Note:  The RAL door comes standard with a push latch, so no need for tools or keys to open the door.

Specs & Features of the RAL Aluminum Recessed Door with Drywall Insert:

• Installation: Walls and ceilings
• Material: Extruded Mill Finish Aluminum
• Material: 1/2" or 5/8" thick drywall (sheetrock) factory installed into door pan
• Gasketing: Groove type brush Win Fin-Seal around perimeter
• Locking mechanism: Concealed push latch(es).
• Hinge: Concealed free pivot hinge. Hinge location: Hinges must be located on the first dimension (width). For wall installation, hinges must be located along the floor side (width).
• Retaining Cables: Standard on all RAL doors.
• Flange: 1" Mill aluminum Hidden flange
• Finish: Mill Aluminum
• Size: Special order sizes available upon request

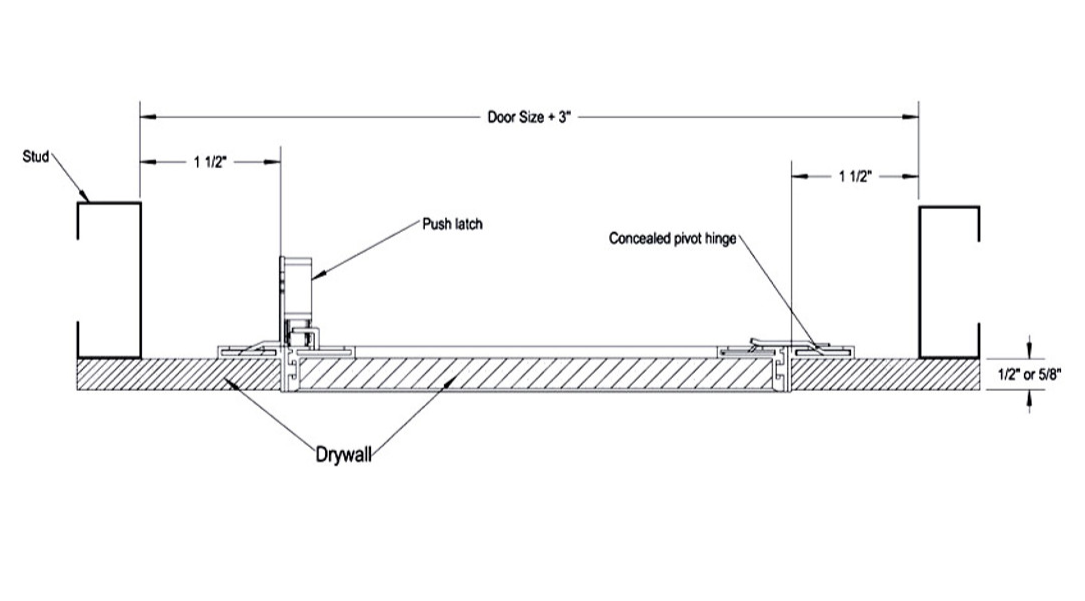

• Rough Opening: Door width + 3/8" x door height + 3/8"

• Packaging: Individually boxed, 1-door per box.
